Model train bridges manufactured, assembled, and shipped in the USA
Contact Chris at:
e-mail: chris.obridge@gmail.com
phone: (863) 207-2638
fax: (863) 324 1276
address: 274 Hernando Road
Winter Haven, FL 33884
We show a link to North American hobby Shop Products--
http://modelshopsusa.com
The Deck of our bridges are 24 gauge steel and the side struts are 18 gauge flat wire. (The flat wire is what you would expect, wire is milled flat top and bottom and the side stays round.) This way the edges are easier on the little hands and our hands too! The decks of the bridges are pre-punched that by turning the extra deck over two 18" decks can be joined into a 36" deck or longer (see the 2nd and 3rd photos on this page) the longest in the industry! For really long, think about the 54" or the 72" bridges or longer. They can also be bolted for two and three track bridges.
Our new G and Standard gauge bridges are designed for the G and Standard Gauge trains 6 inches wide and 9 inches of inside height. We offer these in painted, or even stainless steel for outside use!!!
The advantage of the paint is that the colors can be changed as desired. (Stainless is not to be painted and will develop a gray-pewter coat in the garden.) These bridges are sheared Stainless Steel on the base and top rails. A de-burring service is available for those who may ask for it. The service is done before the various pieces are bent or welded.

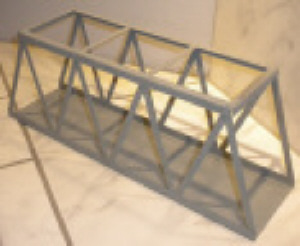

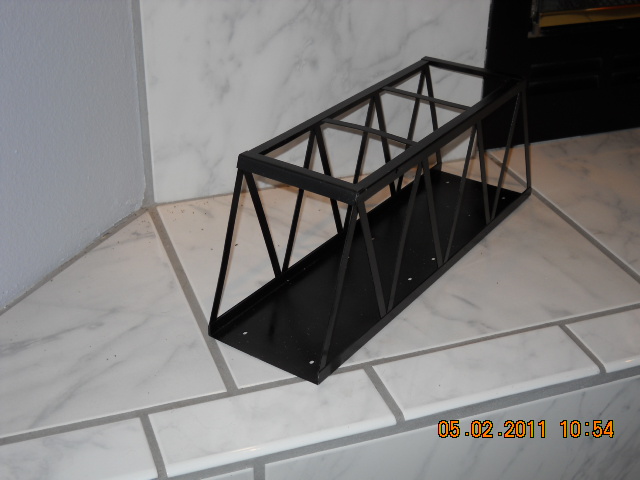

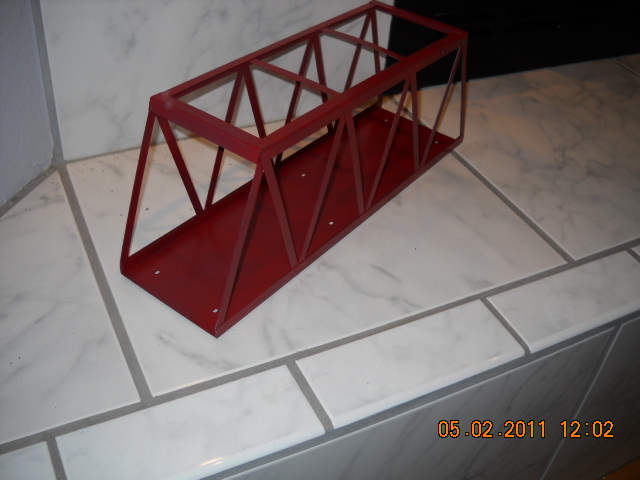

Photo #1 The Single bridge 18" long and 5 inches wide and 6 inches high, can be used as a double track HO bridge or a single S or O gauge bridge
Item#10035 Single Bridge painted colors: Gray Red or Black $65.00 +S&H
<a href="<a href="https://mkt.com/chris-eirich">https://mkt.com/chris-eirich</a>" class="sq-embed-button" data-style-background-color="#22a301" data-style-width="260px" data-style-height="46px">Order Online</a><br><script src="<a href="https://cdn.sq-api.com/market/embed.js">https://cdn.sq-api.com/market/embed.js</a>" charset="utf-8"></script>
Item # 10036 Double Bridge 36" long$120.00 +S&H
(see Photo # 4)Item # 10037 Extra Deck $15.00S&H

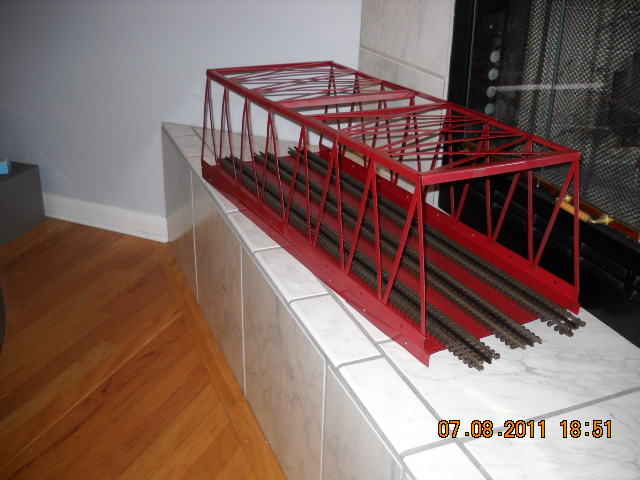

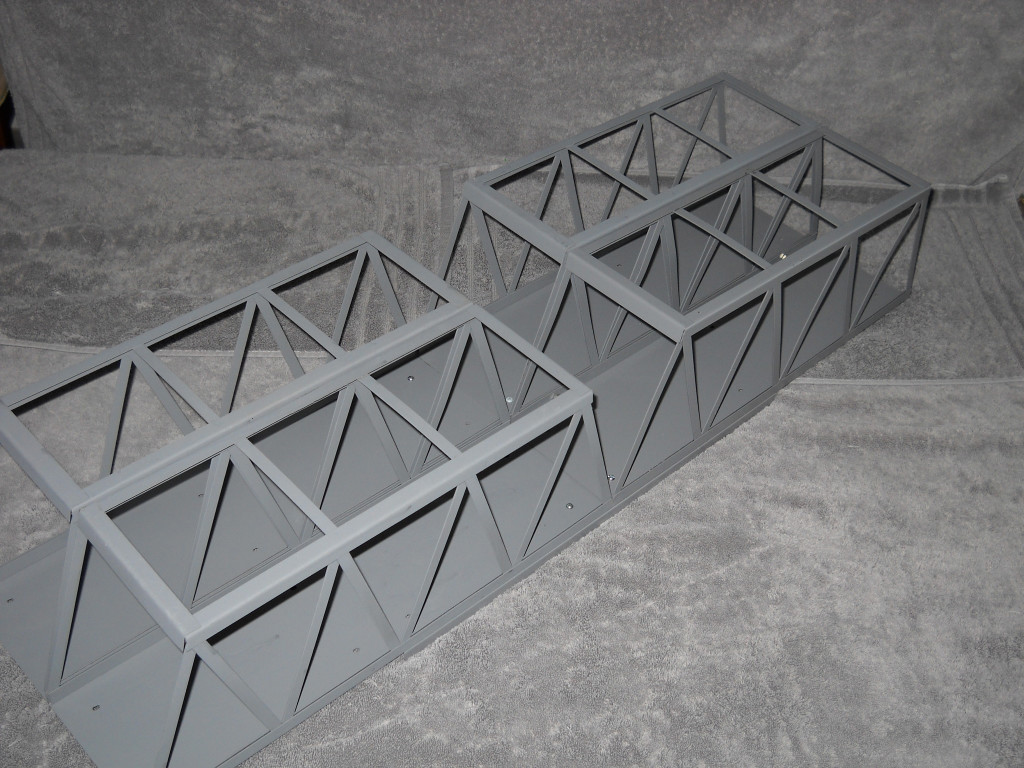

Photo # 2 the double-wide double-long bridge. It is 36 the double-wide double-long bridge. It is 36 inches long and is shown as a 10 inch wide bridge with the ability to handle two lines of S or O Gauge trains.
Item10039A The quad; 4 bridges long, 72 inches in length and capable of 20 lbs. without any center supports. (This comes with 3 extra decks to mate the 4 bridges together and 3 sets of to straps(not shown in this Photo)
$260.00 +S&H
Item 10039B also 4 bridges but configured as a Double Wide Bridge as shown in photo(two extra decks)
$260.00 +S&H
Photo # 3 A Powder Coated (P/C) bridge available for the model railroader who runs the trains who wants a more durable finish. This is shown so that a G Gauge or Standard Gauge pike might use this out in the Garden. there are top straps connecting the web of the bridge together. (Use as an inverted Bridge for G and Standard Gauges.) Use as a regular pass through bridge for S and O Gauge
Item # 10039 the Triple long Bridge with 2 extra decks and 2 sets of straps for the top of the bridge.
Color in P/C Red, Black, or Gray $260.00 + S&H

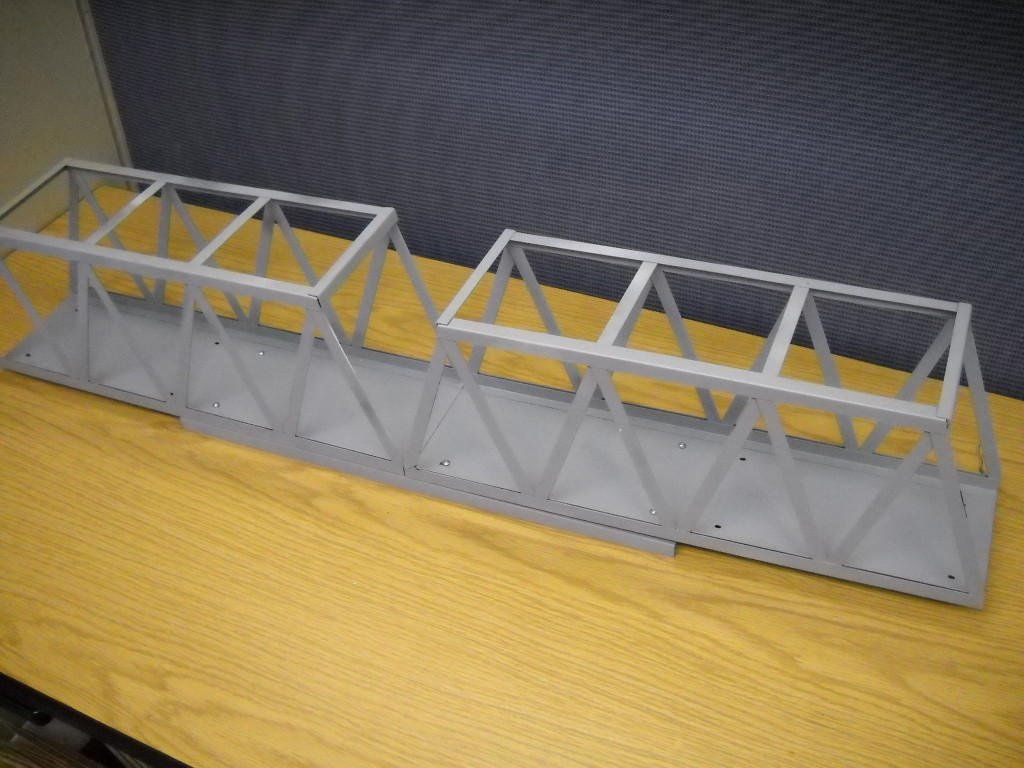

Photo #4 The Double-Long Bridge, 2 welded bridges bolted together as a single 36 inch bridge, (not shown are the Top straps to hold the top of the two bridges together.)
Item # 10036 Double Bridge 36" long
colors: Gray, Red, or Black $130.00 +S&H

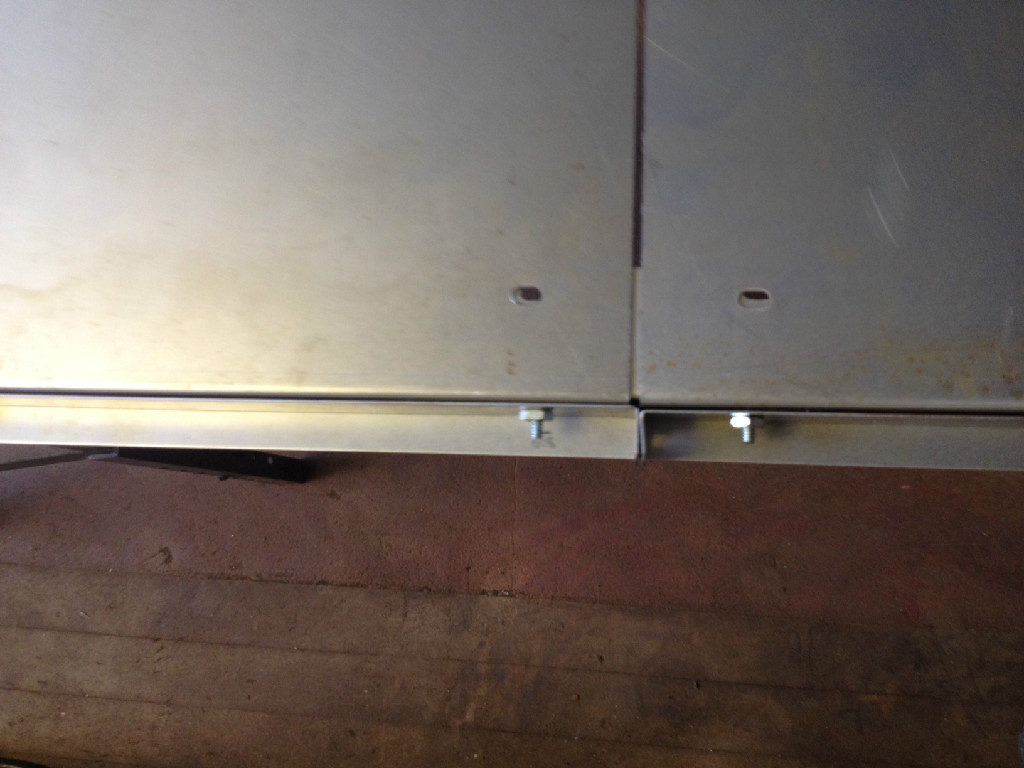

Photo # 5 Shows the underside of the bridge and how the decks are bolted together. We use bolts and a double nut system and this allows the bridge to be mated to the next bridge with the extra deck.
Item # 10037 extra deck $15.00 +S&H

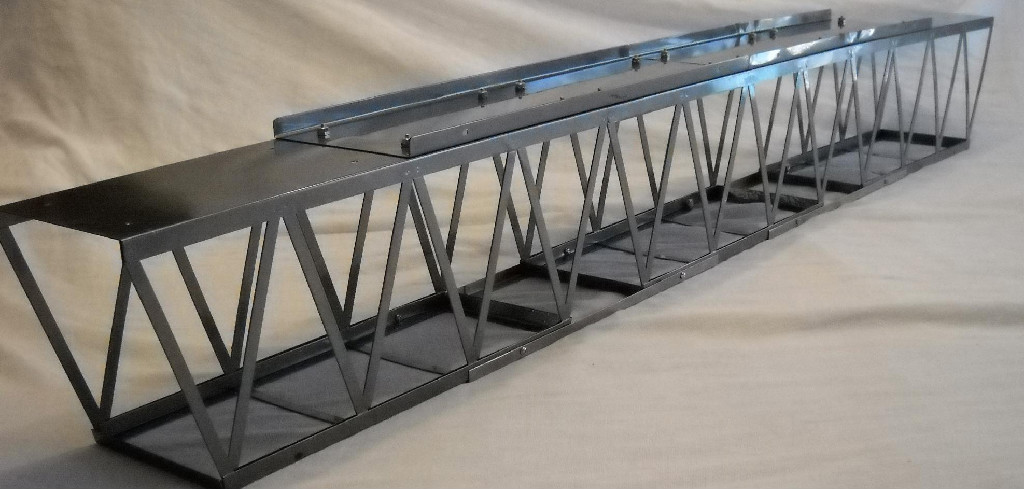

Photo # 6 The inverted 54 inch Powder Coated Bridge. This is suitable for indoor use. Standard and G Gauge trains can use the inverted position (as shown in Photo #6) as there is no height restrictions. The 5 inch base is suitable for HO [double track], S Gauge, O Gauge, G Gauge or Standard Gauge track and equipment. These Bridges carry a 24 lbs. rating so it is stronger inverted.
As shown in Powder coating (P/C):
Item # 10040 the Triple long Bridge with 2 extra decks and 2 sets of straps for the top of the bridge.
Color in Powder/Coat Red, Black, or Gray
$260.00 +S&H
Item # 10039 the Triple long Bridge with 2 extra decks and 2 sets of straps for the top of the bridge. Painted colors in Red, Black, or Gray
$195.00 +S&H

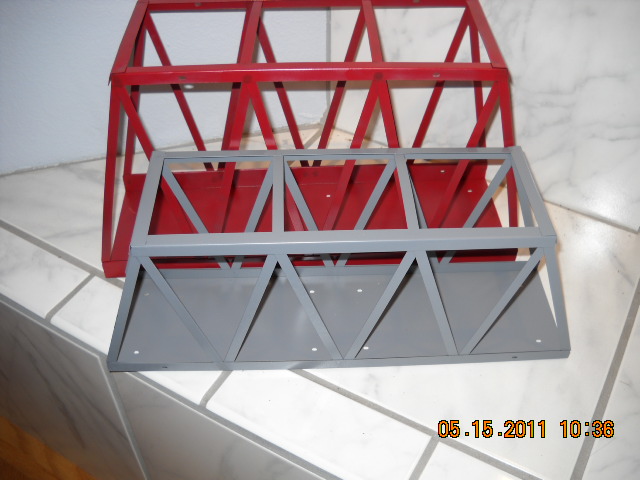

Photo # 7 A G / Standard Gauge Bridge behind a gray O/S Gauge bridge. The Red Bridge is the larger bridge that is 6"x 9" x 18". The Gray bridge is the smaller bridge and is measures 5"x 6 .25" x 18". You can get the G /Standard gauge bridges in two formats:
Painted for inside use, Red, Black and Gray or
Stainless Steel (unpainted and not meant for paint either.) The best use for an outside environment!! Prices for 7A and 7B
the 3A's Bridge same size as the original G/Standard Gauge Bridge---
Item # 10044 the Painted Bridge
Colors Red, Black, or Gray Single $84.00 +S&H
Item # 10045 G Standard GAUGE Bridge
Single
item 10048 Stainless Steel $115.00+S&H
video at the bottom of the Photo # 7---
4 Curved bridge sections make a 90 degree curve, 8 make 180 degree. We make a trestle for each section or each other for realism and support--
Cost for the bridge as shown (6'long x 3' wide) is $432.00+S&H
#10057 Curved Section 90 degrees (1/4 circle)
4 pieces Painted $65.00+S&H
Stainless Steel $75.00+S&H
#10058 Curved section 180 degree (1/2 circle)
8 pieces Painted $110.00+S&H
Stainless Steel $150.00+S&H
Full Circle in O Gauge (360 deg.)$165.00+S&H.
in Stainless Steel $220.00+S&H
Photo # 8 The Triple Bridge for 3 tracks of O Gauge or S gauge traffic, or 2 tracks for G and Standard gauge Tracks. It has a three deck base for extra stability and strength. The bottom two deck make a box and they are bolted to the bridge. (Also suitable as a hinged bridge to eliminate the dreaded duck under)
Item 10047 The triple bridge painted good for
3 tracks of O or S gauge or
2 tracks of G and Standard gauge.
Paint Colors: Red, Black, or Gray $260.00 +S&H
Powdercoated Red,Black,or Gray$300.00 +S&H
Photo #9 The Draw Bridge can be activated to go up and down with a simple toggle switch. We can offer it with a Limit switch on the top and the Bottom (at an extra cost). But it should be used as a hands on basis as you really need to see it pull the bridge up and lower down. The Bridge is hinged high to allow the tracks to meet on the same level.
Longer bridge lengths are available, but they are not motorized
#10051 Draw Bridge O Gauge Un-powered
18" Bridge $195.00 +S&H
Motorized +$35.00
#10052 Draw Bridge in P/coat $215.00 +S&H
Photo #10 The Stainless Steel Bridge shown in the yard with Mulch on the ground and around it. The real outside SS doesn't care what it is doing with rain or morning dew!! Size 6" wide x 9" (inside ) 18"
These bridges are offered with a de-burring option-- cost will be billed at actual invoice cost and we will include the invoice with the order.
Item # 10048 The Stainless Steel Bridge
Single Bridge 18" $115.00 +S&H
2 bridges, as shown are 36" $230.00 +S&H
Triple Long 54" (with 2 free decks, 4 straps)
($50 value) $345.00 +S&H
Quad G 72"(w/3 free decks & straps
($96.00 Value) $460.00 +S&H
Photo #11
We show a different way to make a bridge. A simple Girder bridge. Shown is a 54" deck for G or O gauge.
The cost is less as there is less work involved in the Bridge. May also be as a boxed Bridge (See side of bridge Photo #12)
Cost as Follows:
# 10053 Single G Deck 18 Long 1" side rails (painted) $25.00+S&H
#10037 Single O deck 18" Long 3/8 " side rail $15.00+S&H
Above in Color painted Red, Black, or Gray
#10054 Stainless Steel Deck $30.00+S&H
#10055 Tower (without bridge)painted $65.00+S&H
5"x 6"x 10" high 6 " clearance
Stainless Steel
6"x6"x 14" $150.00+S&H

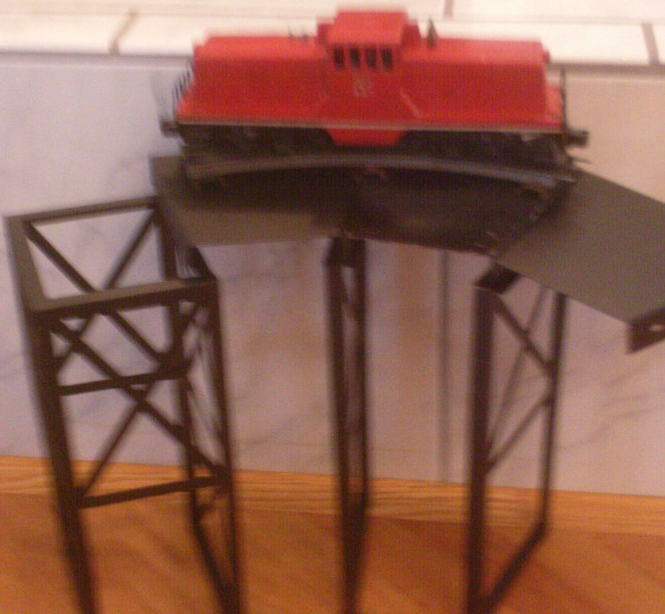

Photos #12 & #13
Shows the "L" Bridge with either 2 "O" Guage Tracks or 1 G Gauge or Standard Guage track on the top bridge. The Tower can be used as seen for a 3rd track (O Gauge Standard, or G available) under the bridge for a on-grade application. A Large Tower can be ordered for G Guage and Standard uses with a 9 inch clearance. (14" High 72" long and 6" wide overall)
Colors : Red, Black or Gray
#10056 "L " Bridge-- tower and bridge panels
Painted Towers @ $65 $130
7 Deck Panels @$25 $175
$305+S&H
Stainless Steel
Towers @$115 $230
7 Decks $35 $245
$475+S&H
Photo #14

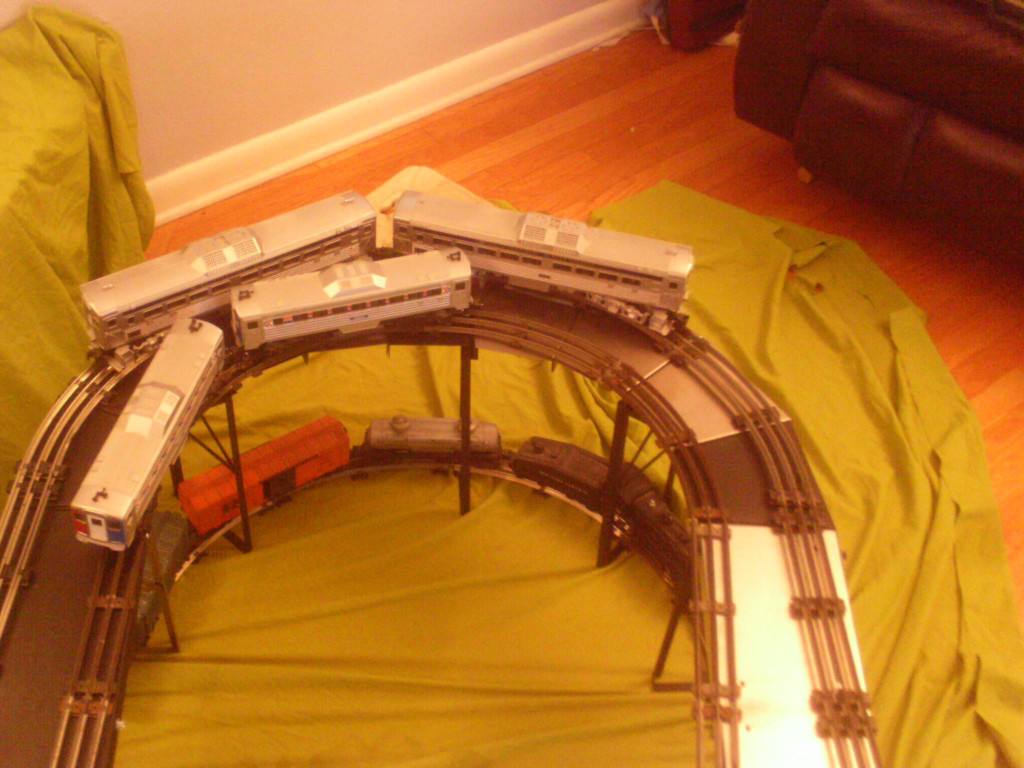

The curved Bridge! Currently available in 31" to 96" inch diameters. Call for larger diameters. (We have made 96" diameters for customers.)
See video at the bottom of the Photo # 7---
4 Curved bridge sections make a 90 degree curve, 8 make 180 degree. We make a trestle for each section or each other for realism and support--
Cost for the bridge as shown (6'x3' wide) is $432.00
#10057 Curved Section 90 degrees (1/4 circle)
31" diameter
4 pieces Painted $55.00+S&H
Stainless Steel $75.00+S&H
#10058 Curved section 180 degree (1/2 circle)
8 pieces Painted $110.00+S&H
Stainless Steel $150.00+S&H
Full Circle in O Gauge (360 deg.)$165.00+S&H.
in Stainless Steel $220.00+S&H
Photo # 15
Curved Bridge sections with Trestles -Curved bridge sections 4 for a 90 degree curve 8 for a 180 degree. We will have a trestle for each section for realism and support--
(half circle)
Item# 10059 Trestle
Prices 14" x 6" Painted trestle $17.50 +S&H
Prices 14" x 6" Stainless Steel $25.00 +S&H
Photo # 16
The "Z" Support and the "I" Beam. The "Z" Support allows joining Decks and/or Bridges to each other without the use of
the extra inverted deck. The "I" beam bolts into the "Z" Support and looks like a real world "I" beam that would under a bridge for Strength.
Item # 10060 "Z" Support (2 in a Pack) Painted $25 +S&H
S/Steel $30+S&H
Item#10061 "I" Beam (2 in a Pack) Painted $5+S&H
S/Steel $7.50 +s&h
